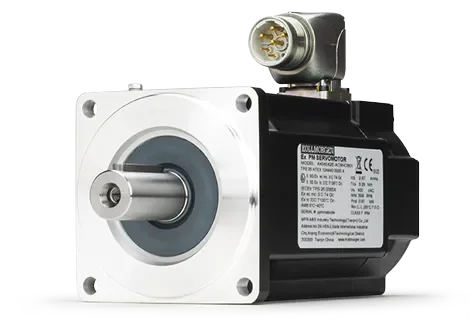

Kollmorgen ATEX-rated AKME Hazardous Duty Servo Motors

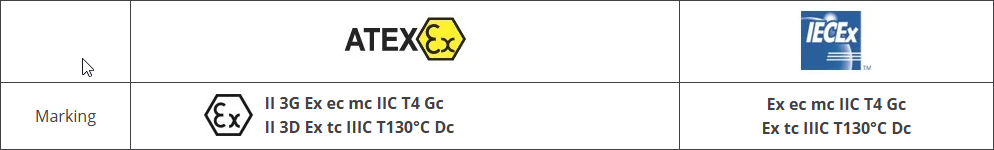

AKME servo motors are built on the proven performance of the AKM servo motor platform, with additional design features to achieve ATEX and IECEx certification for operation in gas Zone 2 and dust Zone 22 hazardous locations. To suit a wide range of applications, these motors are available in frame sizes 2–7 to work with drives powered by 75 Vdc, 120, 240 or 400 Vac., speeds up to 5,000 rpm and with a complete selection of absolute feedback positioning devices.

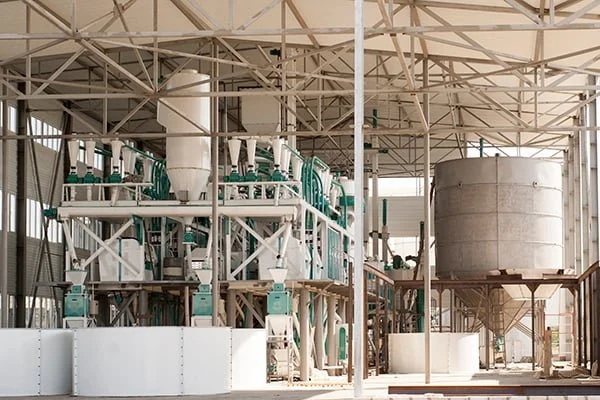

With ATEX and IECEx certifications, the AKME Series extends the AKM family to support a wider range of HazLoc applications. From pharmaceutical production to food processing, grain elevators and more, AKME servo motors provide compact, scalable options for areas where explosive gases or combustible dusts may be present occasionally.
Features:

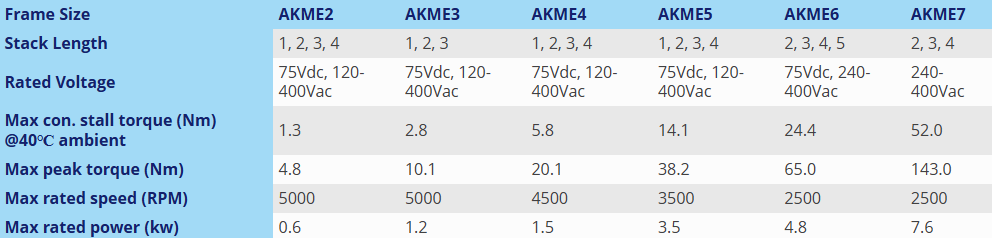

Six frame sizes (54 - 188mm) for broad machine compatibility
Designed for continuous torque from 0.37Nm to 50.4Nm
Speeds up to 5,000 rpm
Compatible with AKD, AKD2G, and Kollmorgen Essentials™ (KED) servo drives
Supports 75 Vdc, 120, 240, and 400 Vac systems
Single- and dual-connector feedback devices include SFD-M; Hiperface DSL; Resolver; Comcoder; EnDat 2.2; BiSS B
IP64 protection for harsh industrial environments
Standard Kollmorgen motor cables (1–25 m)
